Groundwater Levels

Data Schema

Groundwater depths (and/or elevations) are stored in the Groundwater and NAPL Levels table, Each Record requires a Location Code, Well, Date/Time and optionally a Monitoring Round.

Groundwater levels entered as Depths are converted in ESdat outputs as an Elevation, Depth below Top of Casing and Depth below Surface. In order to provide this conversion the Top of Casing must be populated in the Wells table, and the Elevation must be populated in the Locations table.

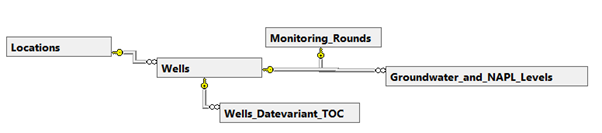

A screenshot of a computer

AI-generated content may be incorrect.

ESdat also supports changes in the Wells Top of Casing, as may be encountered due to subsidence or “benching” in mining operations. Groundwater depth to elevation calculations are able to take these TOC changes into account. Further information on the Wells Datavariant TOC table is available at https://help.esdat.net/en/article/timevarient-toc

Groundwater and NAPL Levels

PK	Column	Type	Description
*	SID	Integer	References Sites.ID - a unique integer for each Site.
	PID	Integer	References Projects.ID - a unique integer for each project.
*	Location_Code	Text(20)	References a Location in the Locations Table.
*	Well	Text(10)	References a Well in the Wells table.
*	Date_Time	DateTime
	Water_Depth	Numeric	Depth to water below the Top of casing
	Water_Elevation	Numeric	Elevation of Water Level if imported from historical data with no depth. Note, the Water_Depth value is converted to elevations in ESdat outputs by deducting the Water Depth from the Wells Top of Casing.
	Product_Depth	Numeric	Depth to LNAPL or DNAPL
	Well_Depth	Numeric	Depth to the base of the well.
	Dry	True/False	If the Well is dry.
	Units	Text(20)	m or ft, deending on the units being used for the Site.
*	Measurement_Method	Text(15)	Method used to measure the groundater depth. Typically Dip or Logger
	Monitoring_Round	Text(30)	Name of each monitoring round, makes extracting data that is obtained in one round over multiple dates easier.
	Well_Depth_Method	Text(255)	Method used to measure the well depth.
	Location_Visit	Integer	References Location_Visits.ID - a unique integer for each Location Visit. Relevant only for field samples collected in the ESdat Field Portal / App.
