Field Data

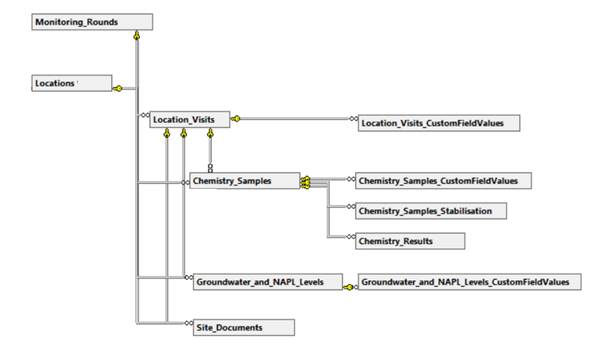

The ESdat Field Portal & the ESdat Field App collects Field Chemistry, Groundwater and other data. Chemistry Results and Groundwater tables and relationships are already described in the Schema documents that deal with those Data Types. This section describes their relationships and usage in relation to field data collection specifically.
Table | Description |
Monitoring Rounds | One entry per monitoring round |
Location Visits | Information about each location visited in a Monitoring Round |
Location Visits CustomFieldValues | Custom Attributes (data) that were collected for the Location Visit |
Chemistry Samples | One entry for each field sample |
Chemistry Samples CustomFieldValues | Custom Attributes associated with a sample |
Chemistry Samples Stabilisation | Groundwater Stabilisation results – typically collected prior to sampling |
Chemistry Results | Field results for a Sample (pH, EC, Turbidity etc..) |
Groundwater and NAPL Levels | Groundwater Dip Reading |
Groundwater and NAPL Levels CustomFieldValues | Custom Attributes associated with a groundwater reading |
Site Documents | Not visible directly in ESdat Online (but a view with the data is available in Data Explorer), only visible in ESdat Server. Stores photos or other documents collected in the field app and other parts of ESdat. |
